Product Information

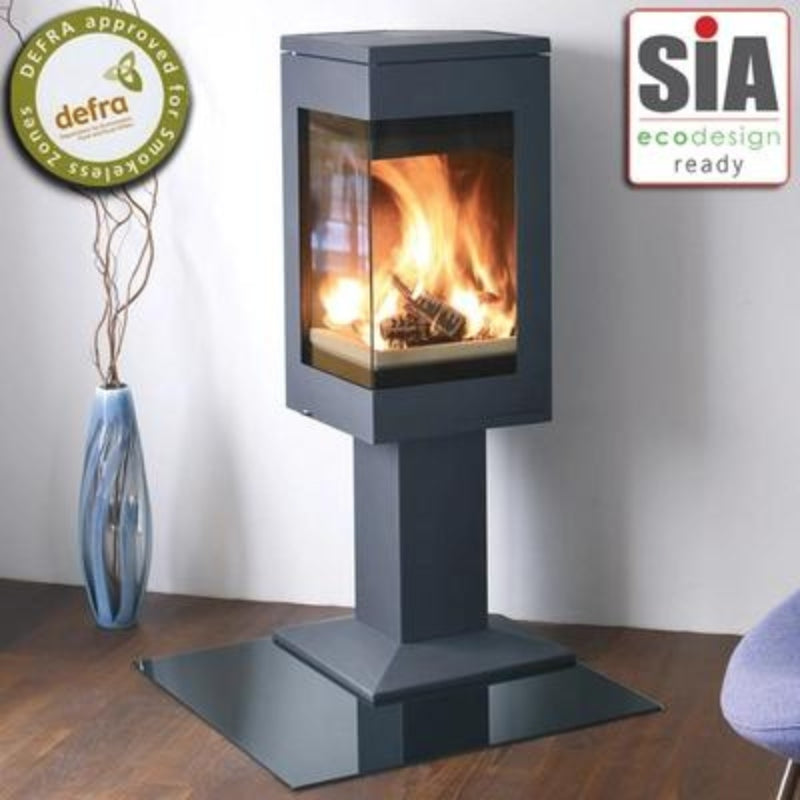

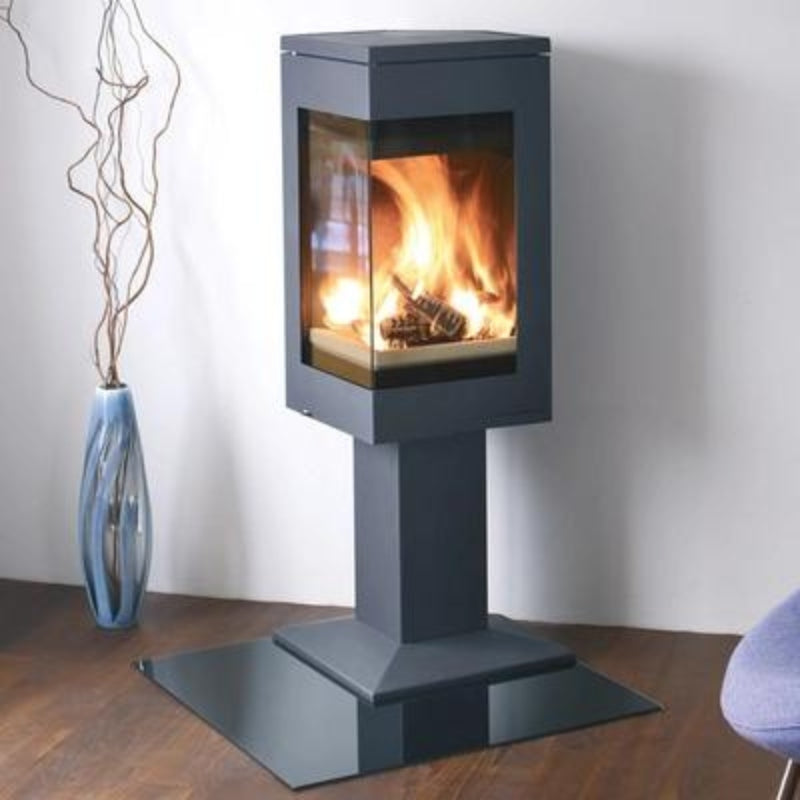

With suberb styling and an angular glass window dramatically wrapping around two sides of the wood burning stove, the Quadro 1P can be enjoyed from all aspects of the room.
This distinctive wood burning stove has a heat output of up to 6.2kW and is suitable for either a top or rear flue installations. A highly efficient addition to your home!
The Quadro can have a direct air supply kit installed as an option to enable the stove to draw it’s combustion air directly from outside the property into the stove rather than using the room air which normally would mean that additional room ventilation is no longer required.
Requires optional Smoke Control Kit to be DEFRA approved.
- SIA EcoDesign Ready
- Powerful airwash
- DEFRA approved for smoke controlled areas if fitted with smoke control kit
- Thermotte lined firebox
- Manufactured from cast iron and steel
- Woodburning stove
- Corner and flat wall model options
- Optional top extension
- Optional direct air supply kit
Technical
Code | NP-QUAD1P |
Heat Output | 6.2kW |
Efficiency | 80% |
Energy Efficiency Class | A+ |
Width | 545mm |
Height | 1205mm |
Depth | 440mm |
Weight | 104kg |
Flue Diameter | 150mm (6") |
Flue Outlet | Top or rear |
Depth From Back To Centre Of Top Flue | 150mm |
DEFRA Approved | Yes (When fitted with smoke control kit) |
Eco Design Ready | Yes |
Cast Iron Or Steel | Steel Body, Glass Door |
Maximum Log Length: | 300mm |
Suitable For 12mm Hearth | Yes |
Distance To Combustibles | |
Side | 400mm |
Rear | 200mm |
