Product Information

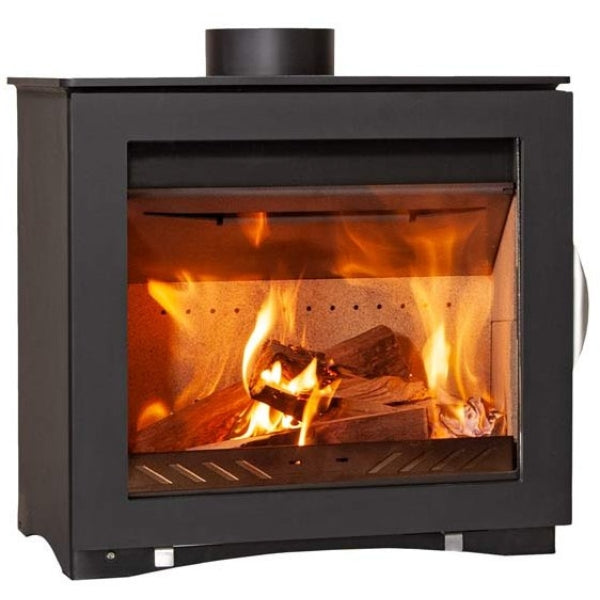

The Arada M Series Widescreen stove features a smooth steel door along with a large glass viewing window, the internal firebox allows for logs up to 375mm in length. A stylish stainless steel door handle and air controls give a modern twist to an otherwise timeless stove, making this a considerable choice for both contemporary and traditional interiors. The Arada M series 5 Widescreen comes as standard with a gently curved flat base whilst an optional set of feet, stand or a log store base can be selected to provide extra height, allowing installation into both fireplace and free-standing settings.
The height of functionality

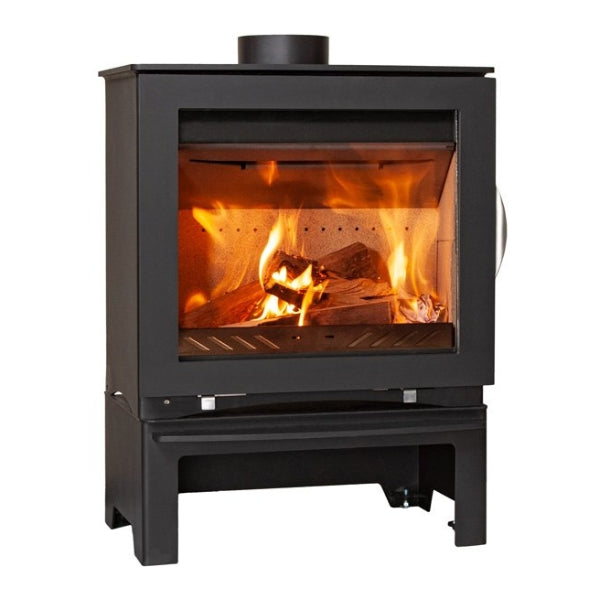

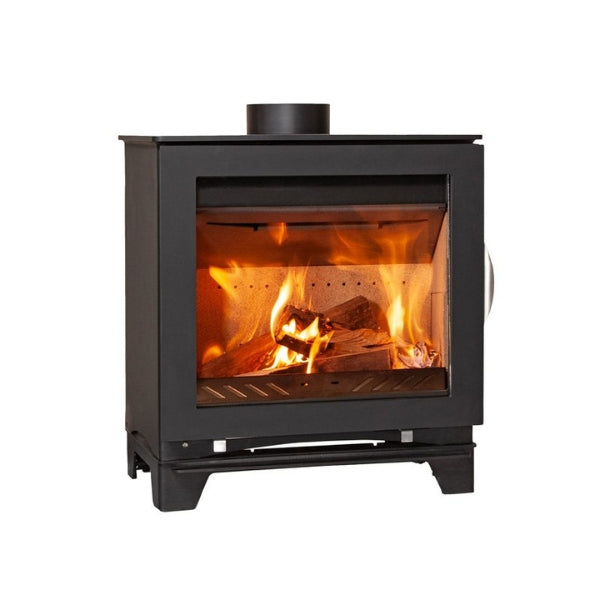

Further enhancing the base M Series 5 Widescreen stove model, there are three optional stand variations to choose from. The first option is a set of bolt-on feet which increases the overall stove height by about 8cm. For additional practicality, our mid-height Stand and Log Store optional extras have integrated storage areas. Each of these three options has an integrated ash lip to help keep your hearth looking smart.
The Arada M Series 5 Widescreen with steel door provides up to 4.9kW of heat, perfect for most standard-sized living spaces and also provides an impressive 81.3%, A+ rated energy efficiency rating. The Arada M series 5 Widescreen with steel door is proudly manufactured here in the UK and is backed up by Arada's lifetime warranty guarantee.
- Lifetime guarantee
- Wood-only stove. Surpasses Ecodesign standards for wood burning
- Approved for use in Smoke Control Areas
- Stainless steel ash pan and throat plate
- Top or rear 127mm (5inch) flue outlet
- Available with either Cast Iron or Steel door
- Click-close door latch
- Direct air compatible
- Suitable for installation on non-constructional hearth
- Optional rear heat shield for closer positioning to combustibles
- Preheated airwash system for clean glass
- Height adjusting legs as standard
- Non-smoker paint
Technical
Code | MSTEEL-5WS |
Heat Output | 5kW |
Efficiency | 81.3% |
Energy Efficiency Class | A+ |
Width | 525mm |
Height | 485mm |
Depth | 350mm |
Weight | 87kg |
Flue Diameter | 127mm (5") |
Flue Outlet | Top / Rear Interchangable |
Depth From Back To Centre Of Top Flue | 135mm |
Height to Centre of Rear Flue | 349mm |
DEFRA Approved | Yes |
Eco Design Ready | Yes |
Maximum Log Length | 375mm |
Suitable For 12mm Hearth | Yes |
Distance To Combustibles | |
Side | 350mm |
Rear | 650mm |
Colour Options
Downloads
Arada M Series 5 Widescreen - User Guide
Arada M Series 5 Widescreen - Installation Guide
